Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: HSTV
  • Model Number: P40
  • Usage: Outdoor
  • Tube Chip Color: Full Color
  • Display Function: Text, Graphics, Video
  • Pixels: 40mm
  • Screen Dimension: 600*600*25mm
  • Type: DIP5050 (build-in drive IC)
  • Pixel Density: 625 Dots/sqm
  • Cabinet Resolution: 15*15dot
  • Cabinet Weight: 3kg/Panel
  • IP Rating( front/back): IP66
  • Brightness: >2000CD/sqm

Packaging & Delivery

Packaging Details woodencase or flightcase package according to client's requirement
Delivery Time Within 15~20 days after receiving the deposit

Leading 2017 new products---Outdoor Decorative Aluminum Led Mesh Curtain Screen(256 gray scale serial)

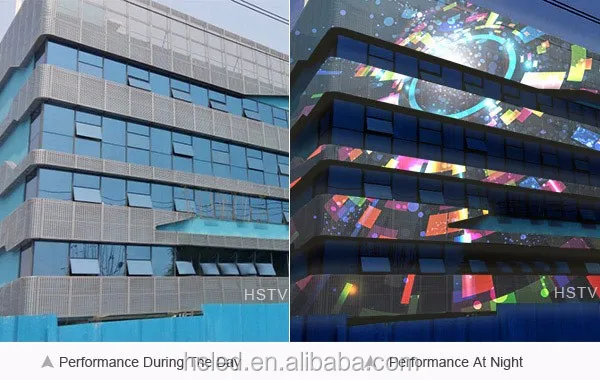

P40mm outdoor decorative aluminum led mesh curtain screen is the perfect architectural decoration patterns in the daytime. And it becomes led display screen to display image and video at night.

Ultra-lightweight, super slim, saving transport cost

P40mm outdoor decorative aluminum led curtain screen only weight 5kg/sqm, which is easy to install. The convenient installation help everyone can install over 50sqm every day. 30sqm decorative aluminum Led curtain screen can be packaged in one CMB which is save a lot in transportation. It is not only good for transport but also good for maintenance. Front and back maintain are available due to its special design.

Translucent screen with exquisite appearance

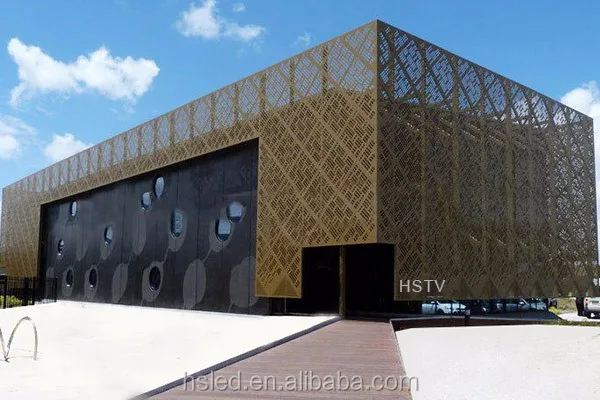

P40mm outdoor decorative aluminum led curtain screen can be installed directly on the wall or glass. The hollow design makes permeability up to 70% which is conducive to ventilation and lighting. The exquisite appearance is good for decoration of shopping mall, hotel, office building and 5s shop etc.

Color would not change within 20 years, exquisite designs can be customized

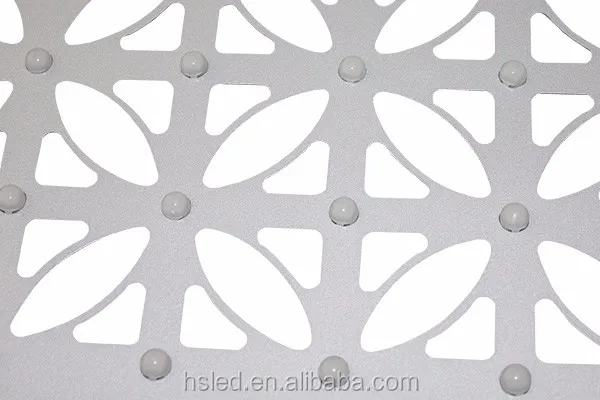

The aluminum shell save install material can be fixed easily. High-intensity sealed lamp with high quality up to IP66 protection level. The beautiful patterns can be customized for customer.

Easy to operate, free to splice

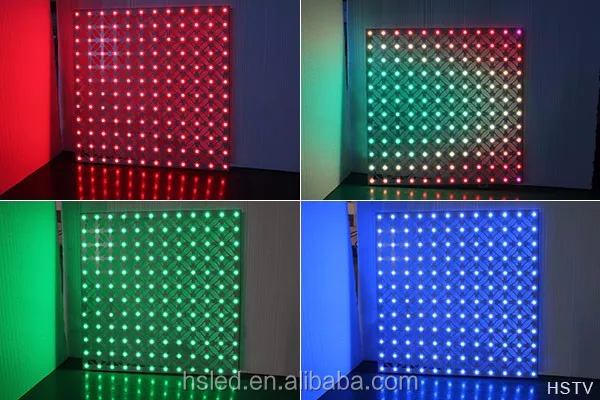

P40mm outdoor decorative aluminum led curtain screen can display text, image and video. Low power consumption is also good for long life span.

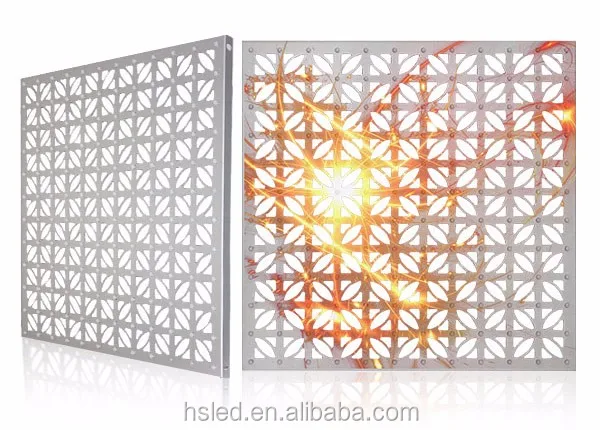

Aluminum frame with stable performance

IP66 protection rate features waterproof, anti-dust, wind resistant and anti-corrosion which is suitable for all kinds of using environment.

Noise free, convenient installation

Decorative aluminum led curtain screen is very easy to set up. The cabinet was designed by our engineer very attentively and adopted advanced technology to manufacture which support front and rear installation. Cooling with wind is environment friendly and make noise free.

Application of decorative aluminum Led curtain screen

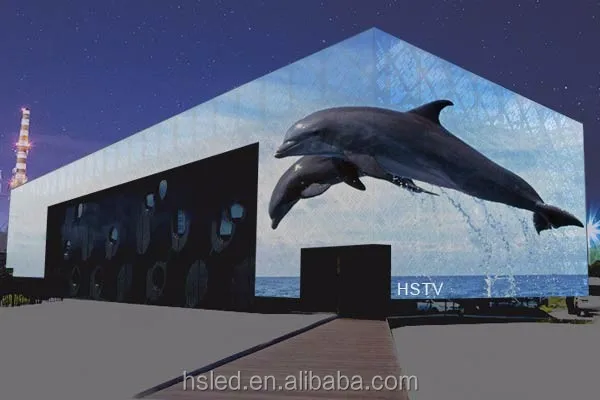

Decorative aluminum Led curtain screen can be used in stadium, shopping mall, 5s car shop and theme park etc.



LED Lamp
Pixel Pitch40mm
TypeDIP5050 (build-in drive IC)
Arrangement1R1G1B
Chip parametersRed (625-630nm) IV:(800-1000mcd)
Chip parametersGreen (523-526nm) IV:(2000-2020mcd)
Chip parametersBlue (470-473nm) IV:(500-700mcd)
LED Module
Pixel Density625 Dots/sqm
module layoutEllipse
Module Size(diameter )9mm
Module Resolution1×1dot
LED Cabinet
Cabinet Size600×600×25mm
Cabinet Resolution15×15dot
Cabinet Weight3kg/Panel
IP Rating( front/back)IP66
Brightness>2000CD/sqm
Viewing Angle(H/V)120o/120o
Viewing Distance100m
Gray Scale per Color256 level
Max.Power Consumption200W/sqm
Ave.Power Consumption60W/sqm
Refresh Rate>300Hz
EnvironmentOUTDOOR
Display FunctionText, Graphics, Video
Input VoltageAC110-220V±10%, 50/60Hz
Operating Temperature- 20oC~50oC
Operating Humidity10%~90%
MTBF( mean time between failures)5000 hours
Operating Life100, 000 hours
Control System
Control MethodSynchronization/Asynchronization
Control SystemSending Box
Input SignalAVI/GIF/TXT.etc
PC Operating SystemMicrosoft Windows 10, XP and Windows 7
Communication TypeNet cable,SD card
SoftwareLED EdiT ( HSTV-SINGBA LIGHT )
LanguageChinese, English
CertificateCE, ROHS, FCC, ISO9001, TUV
Control Card InputsRJ45
