Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: HSTV
  • Model Number: DZ10
  • Usage: Outdoor
  • Tube Chip Color: Full Color
  • Display Function: Text,Graphics,Video, Text, Graphics, Video
  • Pixels: 10mm
  • Screen Dimension: 960*960*120mm
  • LED Lamp Brand: Epistar
  • Pixel Pitch: 10mm
  • Pixel Density: 10000 Dots/sqm
  • Cabinet Resolution: 96*96=9216(Dots)
  • Cabinet Dimension(W*H*D): 960*960*120mm
  • Brightness: >5600cd/sqm
  • Protection Level(front/back): IP66/IP54
  • Humidity: 15%~85%
  • Refresh Rate: >1800Hz

Packaging & Delivery

Packaging Details: woodencase or flightcase package according to client's requirement
Delivery Detail: Within 15~20 days after receiving the deposit

High contrast ratio design

The mask designed by 10 years working experience team. High transparency mask can deliver the clear image and keep the rich color of dance floor led screen.

Excellent load-bearing performance

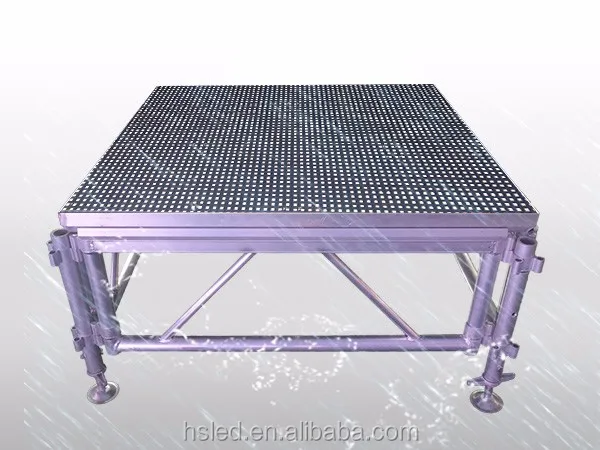

PH10 Outdoor SMD Dance Floor LED Screen adopted hard-wearing acrylic mask which can be treaded directly. Redesign iron cabinet enhanced the structure of load-bearing. Load-bearing up to 1.5 T/sqm.The base can be adjusted from 0.6 to 1 meter.

Standard Cabinet Dimensions

PH10 Outdoor SMD Dance Floor LED Screen can be installed directly without and stools. It is very easy and fast.

Convenient maintenance

The cabinet can be disassembled individual which is easy and fast for install and maintenance. Modular design is the special structure for dance floor.

Multifunction

PH10 Outdoor SMD Dance Floor LED Screen can be used for dance floor and can also use as outdoor normal led display screen.

Outstanding heat dissipation characteristic

Special heat dissipation space design and standard iron material can help heat dissipation fast and make led display run well.

High gray scale even in low brightness

High gray scale ensures good consistency even in low brightness. It can keep a very excellent gray scale performance even lower 20% brightness of entire screen.

Great protection function to ensure safety

IP 66 protection rate make led screen features anti-dust and waterproof which protect led screen run well in any harsh environment.

Application

Dance floor led screen can be used at stage, bar, entertainment center, shopping mall and theatre etc. It is irreplaceable product in floor decoration. Strong, hard-wearing, seamless splice, great load-wearing and special heat dissipation channel characteristics make it perform well in any applications.



About Haisheng:


Shenzhen Haisheng Led CO., LTD is a 8 years professional LED display, HSTV manufacturer.
It is a high technology which is specialized in researching, designing, manufacturing and exporting
all kind of LED products. We have our own professional R&D department, engineers, sales department,
experienced QC and workers.

Currently we design and produce our new type of products, such as HSTV, double
sided led display, one whole body outdoor advertising led display, one whole body led window display.

We focus on looking for the best solution for every customer’s projects and also glad to see that we receive good feedback and win long term relationship. Win-win business is what we pursue all the time.

Advantageous descriptions:
1. professional technical support + quality promise
2. CE ROHS FCC ISO9001 certificate
3. Alibaba + TUV assessment supplier approved
4. 2 year waranty + 1 set of spare part for free

Basic promise from Haisheng:
A: Full automatic production to control our high quality, best color consistency and get better performance.
B: Energy saving, low power consumption and long lifespan 10,000 hours (about 10 years).
C: We guarantee that the equipment we provide are brand new, complete and unused.
D: Good heat dissipation capability and high waterproof because of the unique design of vent fan (like shutter).
E: Our quality control throughout every process from materials-production- test-package-delivery(led lamp, module, cabinet, aging test etc.




LED Lamp
TypeSMD3535
BrandEpistar
Arrangement1R1G1B
Chip parametersRed (620-625nm) IV:(800-960mcd)
Chip parametersGreen (520-525nm) IV:(1350-1650mcd)
Chip parametersBlue (470-475nm) IV:(330-400mcd)
LED Module
Pixel Pitch10mm
Module Size320×160mm
Module Resolution32×16=512(Dots)
Module Weight0.5kg
LED Cabinet
Pixel Density10000 Dots/sqm
Frame Frequencyno less than 60 frame/sec
Cabinet Resolution96×96=9216(Dots)
Input VoltageAC110-220V±10%, 50/60Hz
Cabinet Dimension(W*H*D)960×960×120mm
Output VoltageDC-5V, 40A/60A/80A
Module Quanty /Cabinet3×6=18(Pcs)
Color Grayscale16bit
Cabinets MaterialSteel
Color ProcessingR(1024)×G(1024)×B(1024)
Cabinet Weight39kg
Brightness Adjustment256 color levels, can be adjusted manually and automatically optional
Brightness>5600cd/sqm
MTBF( mean time between failures)5000 hours
Viewing Angle120(Horizontal), 120(Vertical)
Life-span100, 000 hours
Nearest Viewing Distance13m
Protection Level(front/back)IP66/IP54
Power Consumption (Max)1000 w/sqm
Malfunction Dot Rateless than 0.0001
Power Consumption (Average)300 w/sqm
Working Temperature-30oC~50oC
Display FunctionText, Graphics, Video
Humidity15%~85%
Refresh Rate>1800Hz
Drive Mode/Driver PositionConstant driving 1/4 Scan, Combined diver board
Control System
Control ModeSynchronization/Asynchronization
Input SignalAVI/MPG/MPEG/TXT.etc
Control SystemSending Card, Receiving Card, Receiving HUB
PC Operating SystemMicrosoft Windows 10 ,Windows 7 and XP
SoftwareLED Studio(HSTV-linsn)
Communication TypeNet cable; 3G, WIFI(Sold separately)
LanguageChinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German
CertificateCE, ROHS, FCC, ISO9001, TUV
Control Card InputDVI, USB, RJ45, HDMI(Sold separately)
