Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Haisheng
  • Model Number: HSGD-O-F-P10
  • Usage: Outdoor
  • Tube Chip Color: Full Color
  • Display Function: Video
  • Pixels: 10mm
  • Screen Dimension: customized size
  • Pixel pitch: 10mm
  • LED standard: SMD3535
  • Brightness: 6500cd/ sqm
  • Protection level: IP65
  • Control mode: Synchronous/Asynchronous
  • View angle: 120degree
  • Led chip: epistar
  • Warranty: 2 year
  • Cabinet size: 960mm x 960mm
  • Cabinte materials: aluminum alloy

Packaging & Delivery

Packaging Details wooden case
Delivery Time 15workdays after deposit receiving

PH10 Outdoor Rental LED Display

Certainly the best option for outdoor advertising, this rental LED display carries some features that make it highly suitable for outdoor areas. Can work in different brightness level and outdoor circumstances. Can be used at stage, bank, promotion, exhibition, station, KTV, stadium, airport and other outdoor places.

High Brightness, Better Quality

Installing at outdoor places require the displays to produce high brightness outputs. The high brightness and high definition features of the Flexible LED Screen for Stage ensures great quality pictures - making it a perfect fit for stage, banks, highways, promotion, station, stadium and other outdoor places.

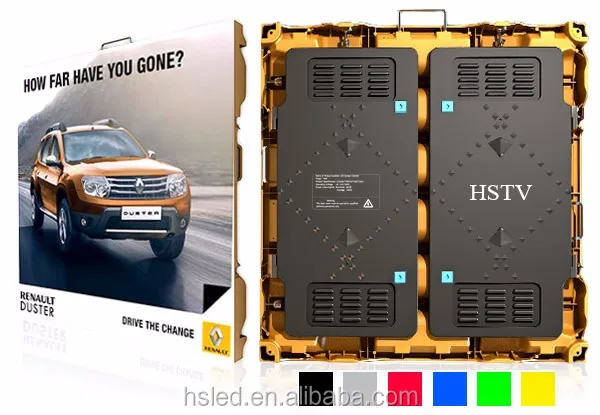

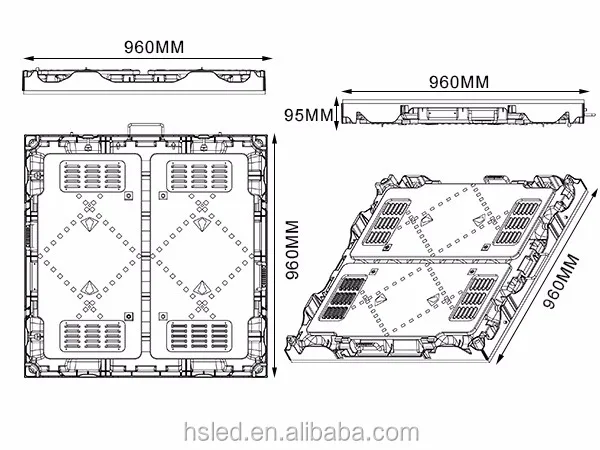

Standard Cabinet Dimensions

The ultra-lightweight cabinet made is aluminum-magnesium alloy which gives it extra strength. The cabinet of Lightweight LED Screen for Show is designed with perfection, making it really easy to install. Also, the quick-lock feature requires no technical skills to install and uninstall.

Integrated Design, Fast Installation

The thin size and ultra-lightweight modules makes it easy to carry, transport and install. You hardly need any specialized tools or skills to install it. Everything is inbuilt, and it can be installed within a few minutes using simple screw-driver.

Great Outdoor Performance

The displays are created for supreme quality outdoor performance, and it delivers the same with perfection. See pictures, videos, text and much more with every detail. The high resolution display offers picture-perfect outputs in outdoor areas - in any environment conditions.

Seamless Splice

The rental LED Screen for Stage can be installed within minutes, without any special tools. You may configure the Flexible LED Screen for Stage as per your requirements and choice. Adjust the brightness, gray scale and picture quality as per your choice. Advanced adjustment options allow you to set up the display as per the environment conditions and area of installation.

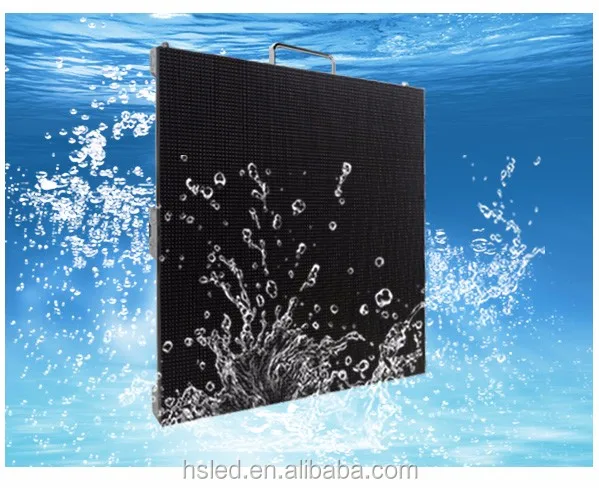

Better Protection

The display features a Front IP66 waterproof grade which protects the display from any damage. A dedicated guard prevents the screen from any damage and environmental effects. The screen will remain harmless in every condition and in every weather.

High Gray Scale - Better Picture

The rental LED Screen for Stage is manufactured by using best quality material, purchased from most reputed vendors. The final products feature supreme quality and offers best outputs. High refresh rate and gray scale ensures the picture quality remains seamless.

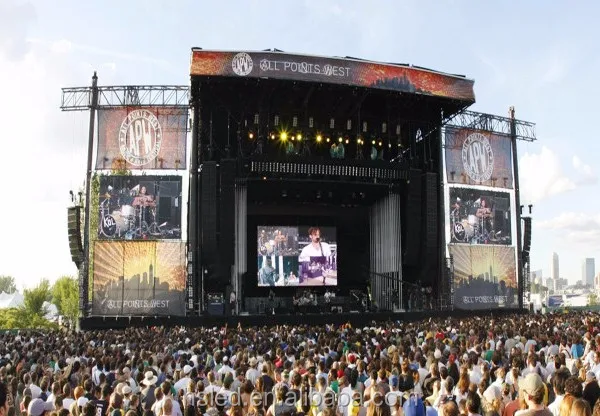

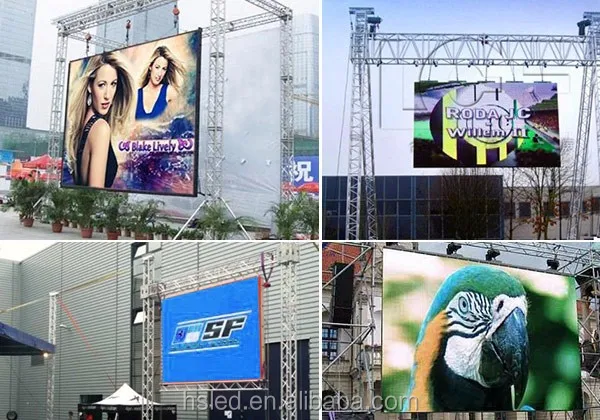

Application

The LED Screen can be used for many purposes and at many places. It can be used for advertisement, banner display, demonstration, video displays, educational purposes and much more. You may use it at outdoor areas like highways, streets, malls, stages, stadium and at many more outdoor places.



LED Lamp
TypeSMD3535
BrandEpistar
Arrangement1R1G1B
Chip parametersRed (625-630nm) IV:(800-960mcd)
Chip parametersGreen (523-526nm) IV:(1350-1650mcd)
Chip parametersBlue (470-473nm) IV:(330-400mcd)

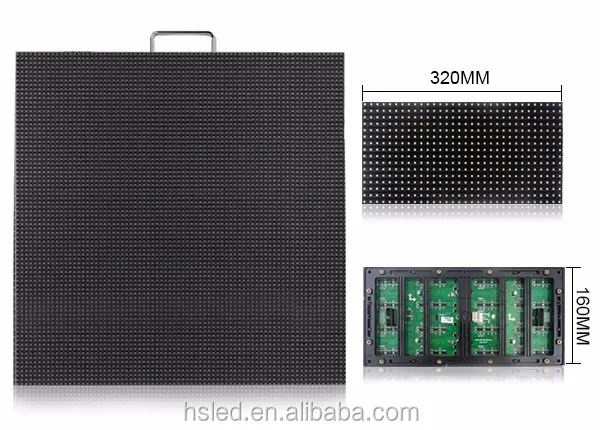

LED Module
Pixel Pitch10mm
Module Size320×160mm
Module Resolution32 x 16
Module Weight0.6kg
LED Cabinet
Pixel Density10000 Dots/sqm
Frame Frequencyno less than 60 frame/sec
Cabinet Resolution96 x 96
Input VoltageAC110-220V±10%, 50/60Hz
Cabinet Dimension(W*H*D)960×960×95mm
Output VoltageDC-5V, 40A/60A/80A
Module Quanty /Cabinet3 x 6
Grey Scale Levels16bit
Cabinets MaterialAluminum-magnesium alloy Cabinet
Color Processing65536
Cabinet Weight30kg
Brightness Adjustment256 color levels, can be adjusted manually and automatically optional
Brightness>6000cd/sqm
MTBF( mean time between failures)5000 hours
Viewing Angle140(Horizontal), 140(Vertical)
Life-span100, 000 hours
Nearest Viewing Distance10m
Protection Level(front/back)IP54/IP65
Power Consumption (Max)1000 w/sqm
Malfunction Dot Rateless than 0.0001
Power Consumption (Average)300 w/sqm
Working Temperature-10oC-50oC
Display FunctionText, Graphics, Video
Humidity15%-85%
Refresh Rate>1500Hz
Drive Mode/Driver Position

Constant driving 1/2 Scan, Combined diver board

Control System
Control ModeSynchronization
Input SignalAVI/MPG/MPEG/TXT.etc
Control SystemSending Card, Receiving Card, Receiving HUB
PC Operating SystemMicrosoft Windows 10, 8, 7, XP and Vista
SoftwareLED Studio
Communication TypeNet cable; 3G, WIFI(Sold separately)
LanguageChinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic
CertificateCE, ROHS, FCC, ISO9001, TUV
Control Card InputDVI, USB, RJ45, HDMI(Sold separately)

About Haisheng:


Shenzhen Haisheng Led CO., LTD is a 8 years professional LED display, HSTV manufacturer.
It is a high technology which is specialized in researching, designing, manufacturing and exporting
all kind of LED products. We have our own professional R&D department, engineers, sales department,
experienced QC and workers.

Currently we design and produce our new type of products, such as HSTV, double
sided led display, one whole body outdoor advertising led display, one whole body led window display.

We focus on looking for the best solution for every customer’s projects and also glad to see that we receive good feedback and win long term relationship. Win-win business is what we pursue all the time.

Advantageous descriptions:
1. professional technical support + quality promise
2. CE ROHS FCC ISO9001 certificate
3. Alibaba + TUV assessment supplier approved
4. 2 year waranty + 1 set of spare part for free

Basic promise from Haisheng:
A: Full automatic production to control our high quality, best color consistency and get better performance.
B: Energy saving, low power consumption and long lifespan 10,000 hours (about 10 years).
C: We guarantee that the equipment we provide are brand new, complete and unused.
D: Good heat dissipation capability and high waterproof because of the unique design of vent fan (like shutter).
E: Our quality control throughout every process from materials-production- test-package-delivery(led lamp, module, cabinet, aging test etc.
