Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: HSLED
  • Model Number: IFSE2.5
  • Usage: Indoor
  • Tube Chip Color: Full Color
  • Display Function: Video
  • Pixels: 2.5mm
  • Screen Dimension: 640*640mm
  • Pixel Pitch: 2.5mm
  • Type: SMD1515 black body
  • Arrangement: 1R1G1B
  • Pixel Density: 160000 Dots/㎡
  • Cabinet Resolution: 256*256=65536(Dots)
  • Cabinet Dimension(W*H*D): 640*640*95mm
  • Drive Mode: 1/32 Scan
  • Refresh rate: 1000Hz
  • Brightness: ≥2000cd/㎡
  • Nearest Viewing Distance: 5m

Packaging & Delivery

Packaging Details woodencase package or flightcase package
Product Description

The Reason you Choose HSLED LED Display

  • Excellent Gray Scale Makes a Real Picture
  • High Refresh Rate and Contrast Ratio Excellent Performance
  • High Efficiency in Heat Dissipation

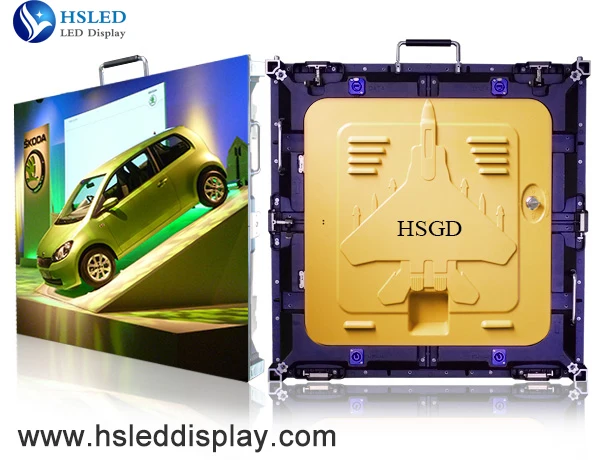

PH2.5 Indoor Rental LED Screen

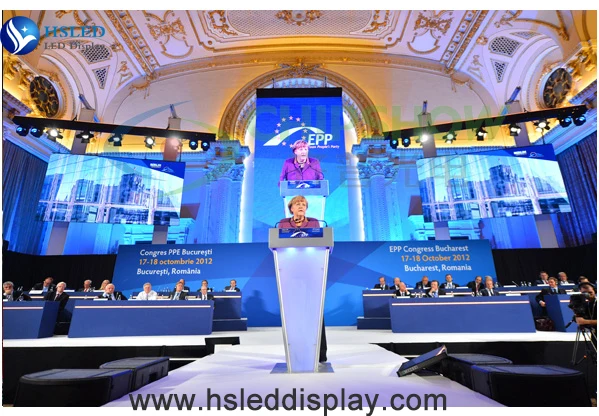

Offering stunning definition, contrast and colour reproduction. Widely used for bank, indoor stage, concert, hotel, station, summit, exhibition and theater etc.

Hot sale product in 2015

Seamless splice technology makes several in one without any  gap. Present a large and clear image for advertising and catch people's attention.

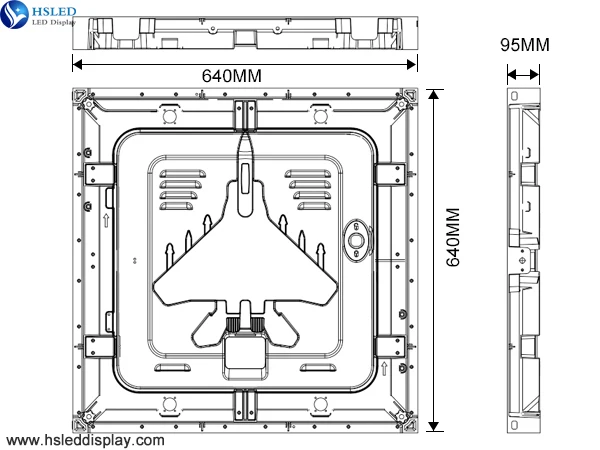

Standard cabinet dimension

Ultra-lightweight die casting aluminum cabinet adopted quick lock system ensure fast installation and easy to transportation.


The quality module

Replace module within minute, one screwdriver figures it out even little-to -no training.We adopt big brand chip and IC to make perfect performance.  LED chip is provided by Cree,Epistar, Nichia and Opto.  Quality IC supplied by MBI, TMS, PWM and Mingyang.

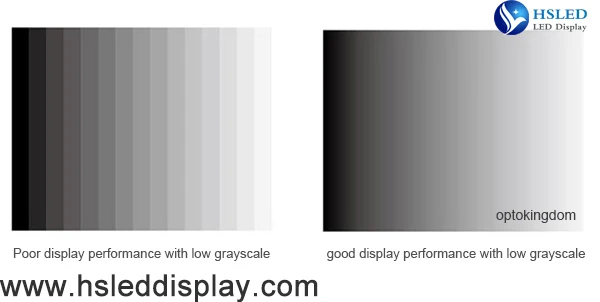

High grey scale and refresh rate create richer colors



Adopting high level IC and system significantly improves grey scales.Over 1000Hz refresh rate ensures flicker free performance.

The totally seamless display brings excellent visual effect

Adopting advanced assembled structure ensures a totally seamless display to provide perfect visual performance.



Silence operation with low power consumption.

Rental led display can keep stable performance from continuous silence operation with low power consumption, fast heat dissipation.

Easy to install

Control system is easy to operate,even kids can operate the system after learning

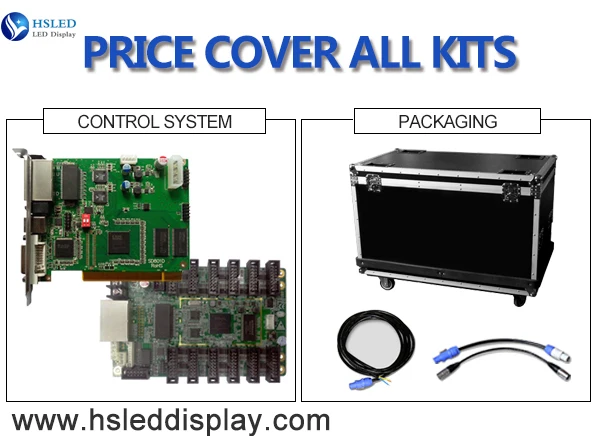

Price cover all kits



The price of the product include the cabinet, control system, and package. It is very convenient for you.



LED Lamps
TypeSMD1515 black bodyChip parametersRed λd:(625-630nm) IV:(65-115mcd )
Arrangement1R1G1BChip parametersGreen λd:(523-526nm) IV:(215-265mcd)
BrandEpistarChip parametersBlue λd:(470-473nm) IV:(33-83mcd)
LED Module
Pixel Pitch2.5mmModule Size160×80mm
Module Resolution64×32=2048(Dots)Module Weight0.24kg
LED Cabinet
Pixel Density160000 Dots/m²Frame Frequencyno less than 60 frame/sec
Cabinet Resolution256×256=65536(Dots)Input VoltageAC110-220V±10%,50/60Hz
Cabinet Dimension(W*H*D)640×640×95mmOutput VoltageDC-5V,40A/60A/80A
Module Quanty /Cabinet4×8=32(Pcs)Grey Scale Levels14bit
Cabinets MaterialAluminum-magnesium alloy CabinetColor ProcessingR(1024)×G(1024)×B(1024)
Cabinet Weight13kgBrightness Adjustment256 color levels,can be adjusted manually and automatically optional
Brightness≥2000cd/m²MTBF( mean time between failures)5000 hours
Viewing Angle140(Horizontal),140(Vertical)Life-span100,000 hours
Nearest Viewing Distance5mProtection Level(front/back)IP31/IP54
Power Consumption (Max)1300 w/m²Malfunction Dot Rateless than 0.0001
Power Consumption (Average)400 w/m²Working Temperature-15℃~50℃
Display FunctionText,Graphics,VideoHumidity15%~85%
Refresh Rate≥1000HzDrive Mode/Driver PositionConstant driving 1/32 Scan,Combined diver board
Control System
Control ModeSynchronization/AsynchronizationInput SignalAVI/MPG/MPEG/TXT.etc
Control SystemSending Card, Receiving Card,Receiving HUBPC Operating SystemMicrosoft Windows 7, XP and Vista
SoftwareLED Studio ( linsn )Communication TypeNet cable,3G,WIFI(Sold separately)
LanguageChinese,Traditional Chinese,English,French,Japanese,Russian,Thai,Spanish,Polish,Italian,Portuguese,Turkish,Dutch,Greek,Bulgarian,Romanian,ArabicCertificateCE,ROHS,FCC,ISO9001,TUV
Control card inputsDVI,USB,RJ45,HDMI(Sold separately)






More Indoor Rental LED Screen





Packaging & Shipping

1. We have woodencase package and flightcase package for your option, woodencase package is the normal package for goods and flightcase package is for easy and frequent transfering of the goods.

2. Shipping by sea is the service until to the destination port. It’s cheap but very slow. Our trading terms are ETX, FOB and CIF. Shipping by sea is a very nice choice if your goods weight is more than 500 KG.
3. Shipping by air is the service until to the destination airport. It’s cheap and very fast but clients have to clear goods from customs by themselves. You can choose shipping by air if your goods are more than 100 KG, however, if your goods are very heavy and are urgently needed, you can also choose shipping by air.
4. Express is door to door service, it’s very convenient. If your products are less than 100 KG, shipping by express is a very nice choice.




Our Services

Company Information

      Optokingdom foreign trade LED shopping mall is a B2C business platform which is mainly built by HaiSheng Led CO.,LTD and a dozen of electronic component suppliers in Shenzhen. The total foundation is more than 10 million USD. It's a direct purchasing platform for small and medium project contractors and terminal users to find inexpensive high-quality products, rapid after-sales service, safe and fast logistics service. Clients are welcome to register on www.optokingdom.com.



Our management principle: Clients will get what they pay without troubles bake at home.



Out target: to promote the development of optoelectronic industry, to reduce the earth resource consumption, to protect the human living environment.

Our duty: No cheating to clients but only honest trading.



our certificates and reputation

    The important components of our product are supplied by big brand. Such as CREE, OPTO, NICHIA, MBI, PWM and Mingyang etc. And we have pass quality certificated of authority, such as RoHS, SGS, CE, FCC, ISO9001 and Alibaba, etc. and gained a lot of awards
